• Wheels, 17" x 8" (43.2 cm x 20.3 cm) painted steel
• Tires, P255/70R17 all-season, blackwall
• Tire, spare P255/70R17 all-season, blackwall (Included and only available with (RBZ) P255/70R17 all-season, blackwall tires.)
• Tire carrier lock keyed cylinder lock that utilizes same key as ignition and door
• Bumper, front chrome lower
• Bumper, rear chrome with rear bumper corner steps
• CornerStep, rear bumper
• Grille surround, chrome (Not included when (SXL) Elevation Edition is ordered.)
• Headlamps, high intensity discharge (HID) projector-beam with LED signature
• Lamps, cargo area, cab mounted with switch on center switch bank
• Mirrors, outside manual, Black
• Glass, solar absorbing, tinted
• Tailgate and bed rail protection caps, top
• Tailgate, locking utilizes same key as ignition and door
• Door handles, Black

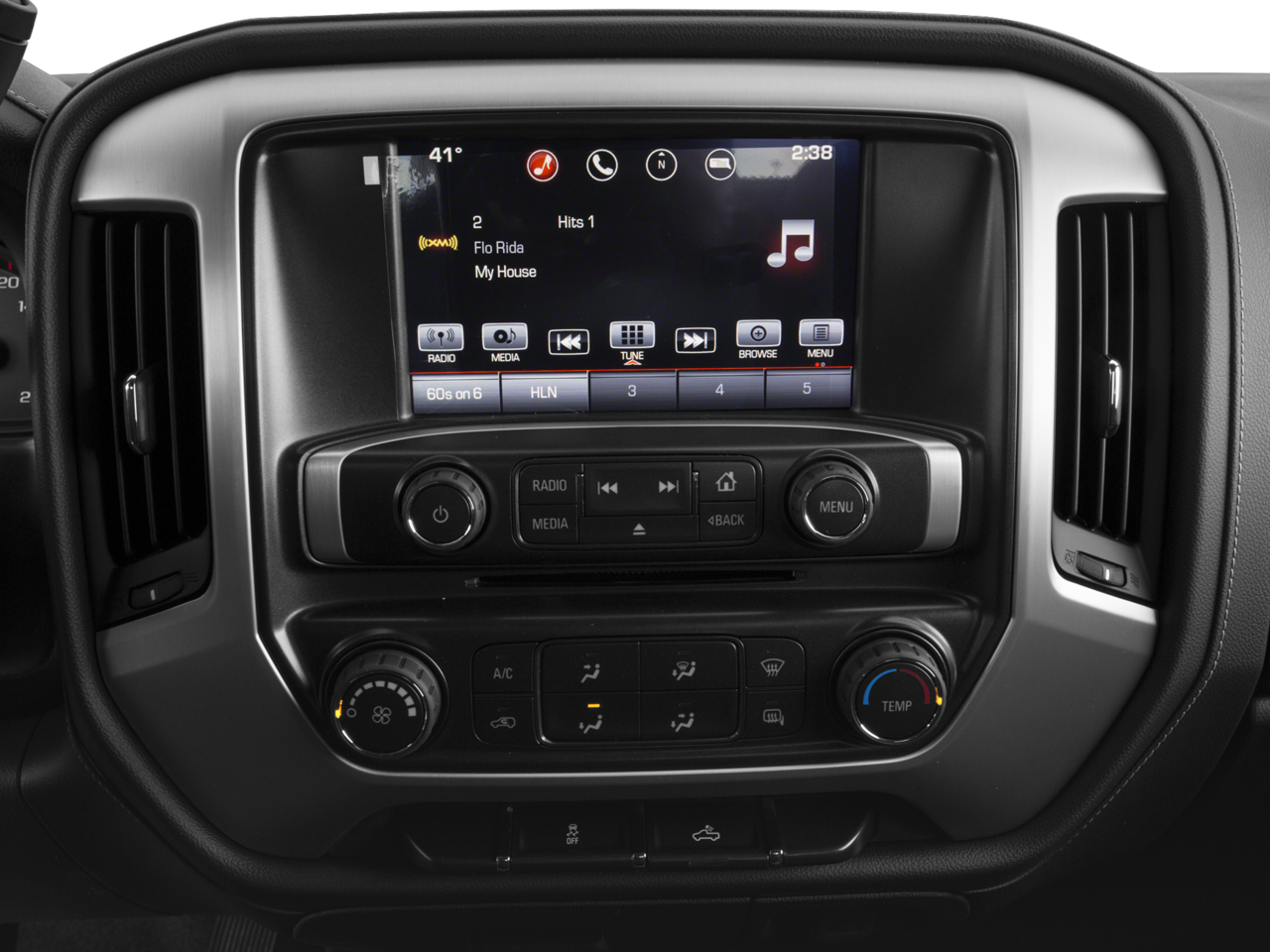

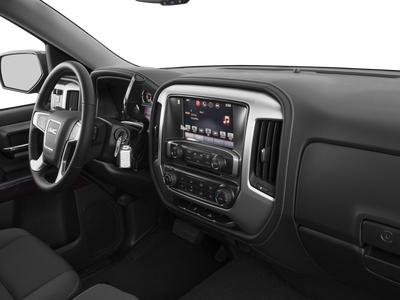

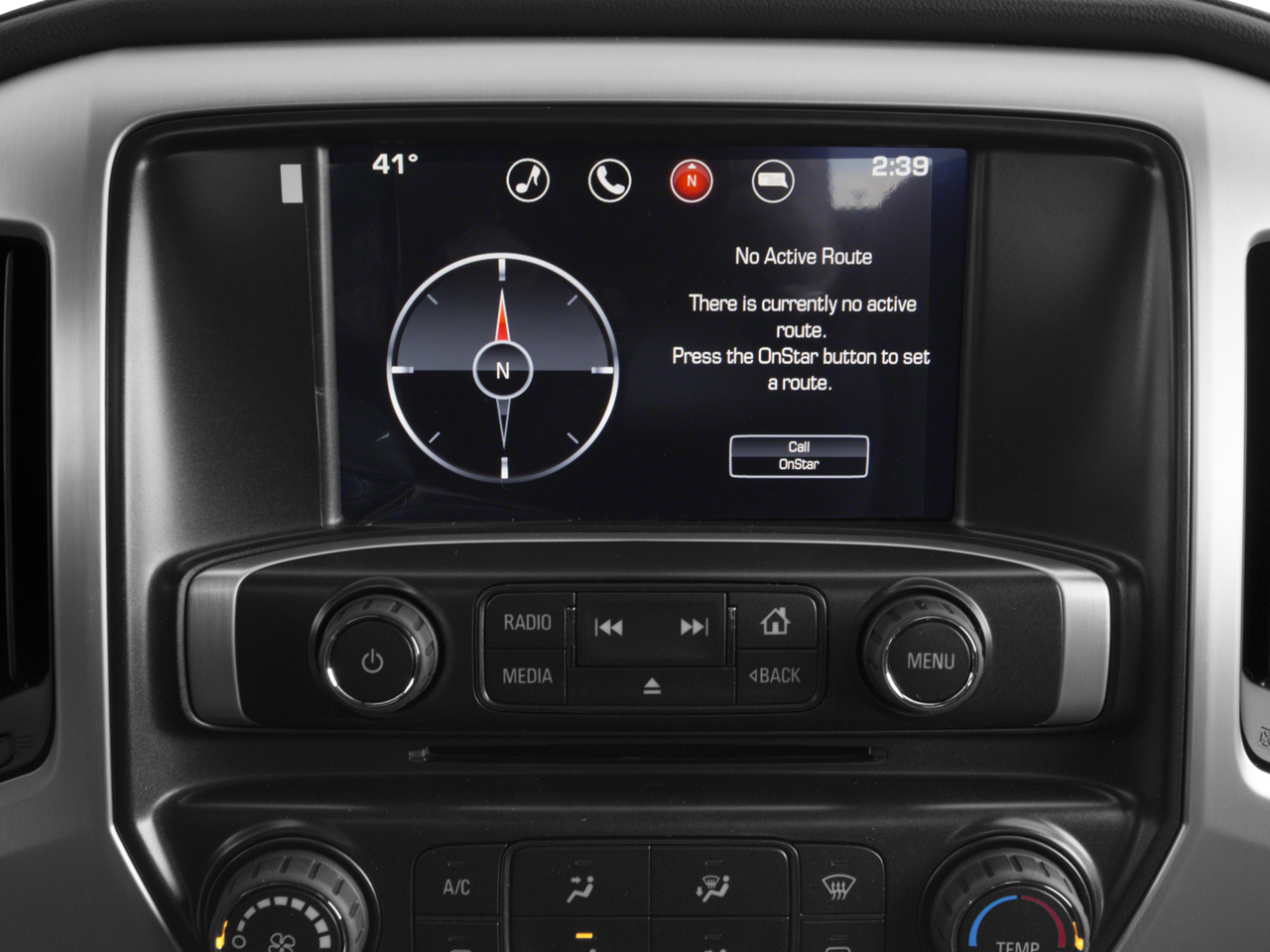

• Audio system, 4.2" diagonal color display, AM/FM stereo with USB port and auxiliary jack (Dynamic guidelines not available on IO3.)
• SiriusXM Satellite Radio, delete
• Audio system feature, 4-speaker system (Requires a Regular Cab model.)

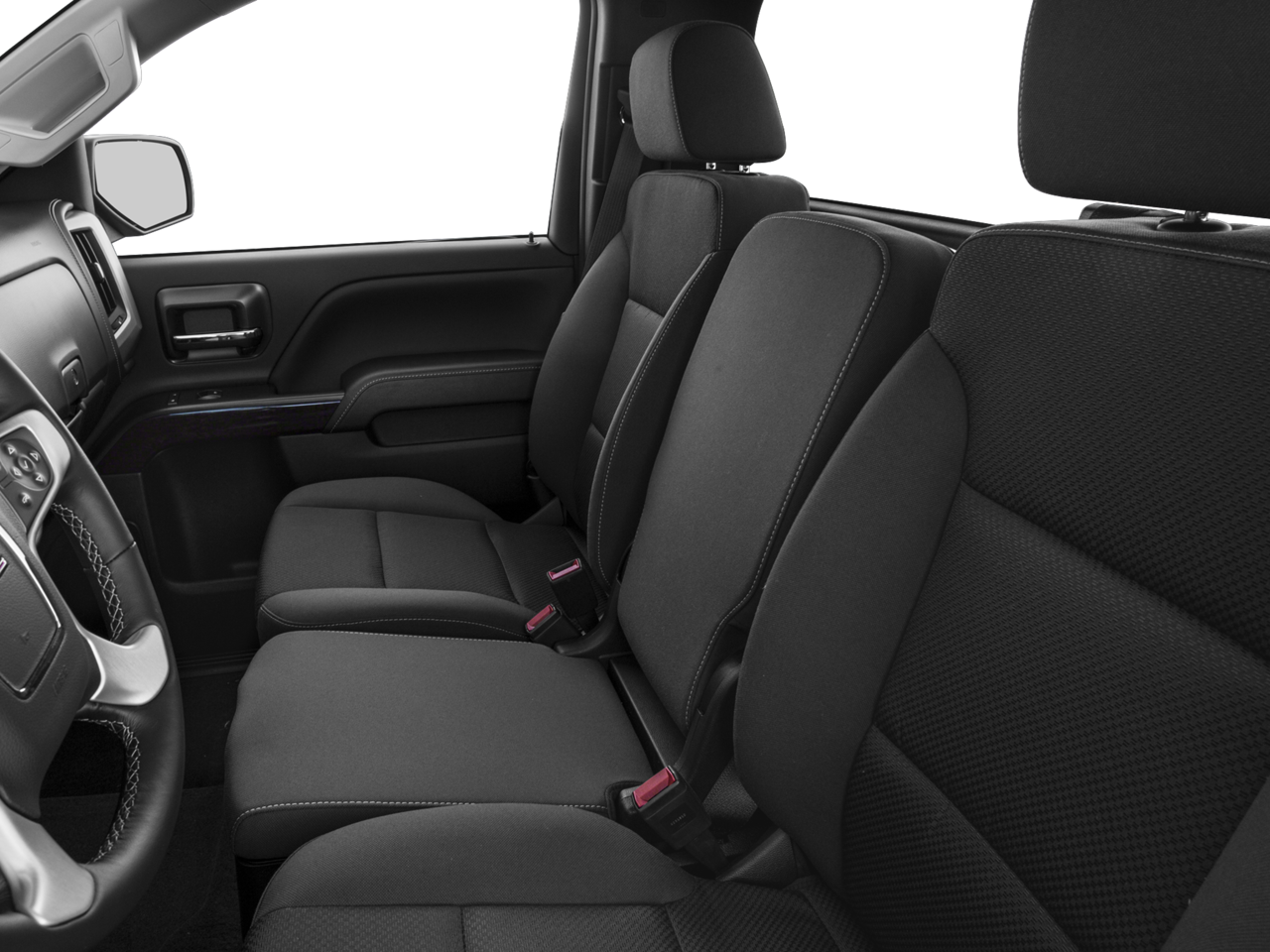

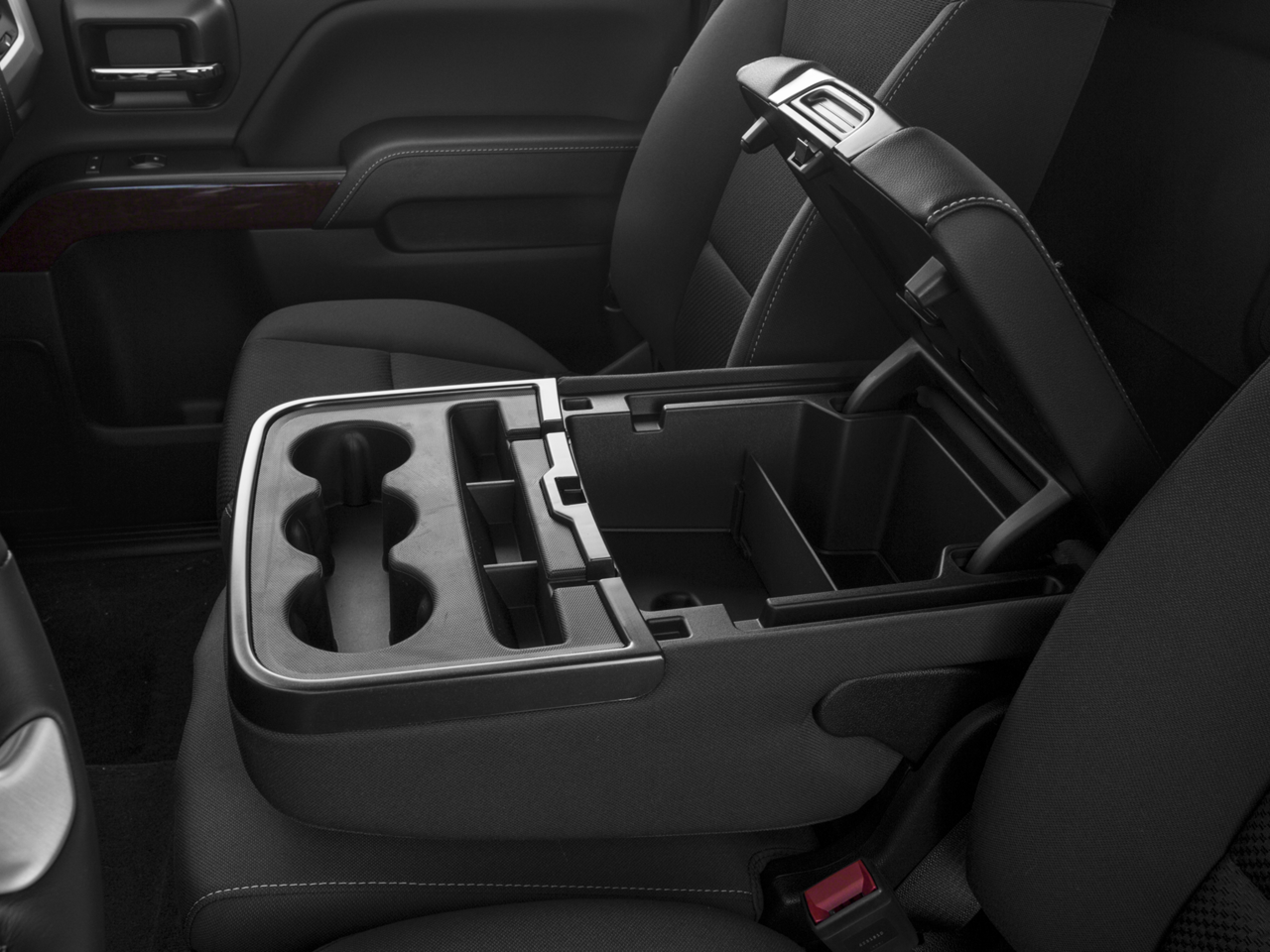

• Seats, front 40/20/40 split-bench 3-passenger, driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manually adjustable driver lumbar.
• Floor covering, Graphite-colored rubberized-vinyl

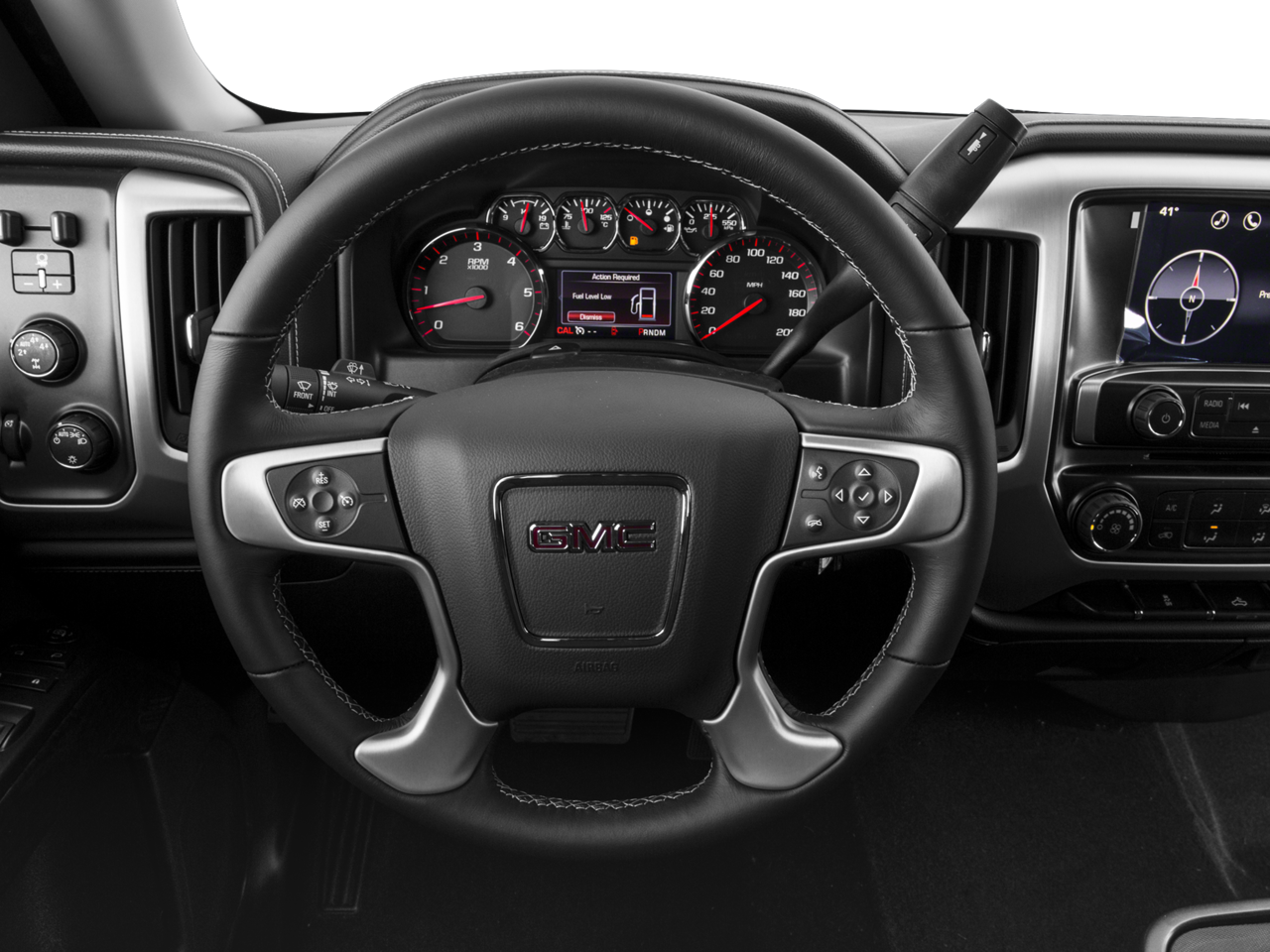

• Steering column, manual Tilt-Wheel
• Driver Information Center, 3.5-inch diagonal monochromatic display provides warning messages and basic vehicle information
• Door locks, power
• Cruise control, steering wheel-mounted
• Air conditioning, single-zone
• Assist handle, front passenger on A-pillar
• OnStar Delete

• StabiliTrak, stability control system with Proactive Roll Avoidance and traction control, includes electronic trailer sway control and hill start assist
• Daytime Running Lamps with automatic exterior lamp control
• Air bags, dual-stage frontal airbags for driver and front passenger, seat-mounted side-impact airbags for driver and front outboard passenger, and head-curtain airbags for front and rear outboard seating positions; includes right-front airbag Passenger Sensing System (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Tire Pressure Monitoring System (does not apply to spare tire)

SIERRA FLEET CONVENIENCE PACKAGE

• includes (DL8) outside heated power-adjustable mirrors
• (A91) remote locking tailgate and (AQQ) Remote Keyless Entry. For Regular Cab also includes (A31) power windows.

PREFERRED EQUIPMENT GROUP

• Includes Standard Equipment

AUDIO SYSTEM, 4.2" DIAGONAL COLOR DISPLAY, AM/FM STEREO

• with USB port and auxiliary jack (STD)

TIRES, P255/70R17 ALL-SEASON, BLACKWALL

• (STD)

THEFT DETERRENT SYSTEM FLEET IMMOBILIZER MODIFICATIONS

• In the absence of master key
• reduces roadside key relearn process to (3) two-minute cycles in place of the standard (3) ten-minute cycles

TRANSMISSION, 6-SPEED AUTOMATIC, ELECTRONICALLY CONTROLLED

• with overdrive and tow/haul mode. Includes Cruise Grade Braking and Powertrain Grade Braking (STD)

PICKUP BOX

• (STD)

FLEET FREE MAINTENANCE CREDIT.

• This option code provides a credit in lieu of the free oil changes
• tire rotations and inspections (4 maximum)
• during the first 24 months and 24
• 000 miles period for this ordered vehicle. The invoice will detail the applicable credit. The customer will be responsible for all oil change
• tire rotations and inspections costs for this vehicle.

• Preferred Equipment Group 1SA
• 4 Speakers
• 4-Speaker Audio System Feature
• AM/FM radio
• Radio data system
• Radio: AM/FM Stereo w/4.2" Diagonal Color Display
• Air Conditioning
• Single-Zone Air Conditioning
• Power steering
• Power Windows w/Driver Express Up & Down
• Remote Keyless Entry
• Heavy Duty Suspension
• Speed-sensing steering
• Traction control
• 4-Wheel Disc Brakes
• ABS brakes
• Dual front impact airbags
• Dual front side impact airbags
• Front anti-roll bar
• Front wheel independent suspension
• Low tire pressure warning
• Occupant sensing airbag
• Overhead airbag
• Remote Locking Tailgate
• Brake assist
• Electronic Stability Control
• Delay-off headlights
• Fully automatic headlights
• High-Intensity Discharge Headlights
• Speed control
• 150 Amp Alternator
• Auxiliary External Transmission Oil Cooler
• Black Manual Outside Mirrors
• Black Power Adjustable Heated Outside Mirrors
• Bumpers: chrome
• Front License Plate Kit
• Rear step bumper
• 3.5" Diagonal Monochromatic Display DIC
• Cloth Seat Trim
• Driver door bin
• Front reading lights
• Graphite-Colored Rubberized-Vinyl Floor Covering
• Overhead console
• Passenger vanity mirror
• Tachometer
• Tilt steering wheel
• Trip computer
• Voltmeter
• 40/20/40 Front Split Bench Seat
• Front Center Armrest w/Storage
• Passenger door bin
• Wheels: 17" x 8" Painted Steel
• Solar Absorbing Tinted Glass
• Variably intermittent wipers

• Mileage
• Fuel Economy Est-Combined (MPG): 19
• Fuel Economy Est-Combined (MPG): 20
• EPA Fuel Economy Est - City (MPG): 16
• EPA Fuel Economy Est - City (MPG): 18
• EPA Fuel Economy Est - Hwy (MPG): 23
• EPA Fuel Economy Est - Hwy (MPG): 24
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 720
• Cold Cranking Amps @ 0° F (Primary): 730
• Maximum Alternator Capacity (amps): 150
• Maximum Alternator Watts: - TBD -
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3300
• Gross Axle Wt Rating - Rear (lbs): 3950
• Curb Weight - Front (lbs): - TBD -
• Curb Weight - Rear (lbs): - TBD -
• Gross Vehicle Weight Rating Cap (lbs): 6800
• Gross Vehicle Weight Rating Cap (lbs): 6700
• Gross Combined Wt Rating (lbs): 15000
• Gross Combined Wt Rating (lbs): 11000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 9800
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 5900
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 980
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 590
• Maximum Trailering Capacity (lbs): 9800
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: 2-Stage Multi-Leaf
• Spring Capacity - Front (lbs): 3300
• Spring Capacity - Rear (lbs): 3950
• Axle Type - Front: Independent
• Axle Type - Rear: Semi-floating
• Axle Capacity - Front (lbs): 3300
• Axle Capacity - Rear (lbs): 3950
• Axle Ratio (:1) - Rear: 3.42
• Axle Ratio (:1) - Rear: 3.23
• Shock Absorber Diameter - Front (mm): 46.00
• Shock Absorber Diameter - Rear (mm): 35.00
• Stabilizer Bar Diameter - Front (in): 1.35
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.00 x 1.18
• Rear Brake Rotor Diam x Thickness (in): 13.60 x 0.79
• Tires
• Front Tire Order Code: RBZ
• Rear Tire Order Code: RBZ
• Spare Tire Order Code: ZBZ
• Front Tire Size: P255/70R17
• Rear Tire Size: P255/70R17
• Spare Tire Size: P255/70R17
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 17 x 8.0
• Rear Wheel Size (in): 17 x 8.0
• Spare Wheel Size (in): 17 x - TBD -
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: - TBD -
• Steering
• Steering Type: Electric Rack & Pinion
• Steering Ratio (:1), On Center: - TBD -
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 43.9
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 34
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 133.00
• Length, Overall w/o rear bumper (in): 224.43
• Width, Max w/o mirrors (in): 80.00
• Height, Overall (in): 73.50
• Overhang, Front (in): - TBD -
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): 116.90
• Cab to Axle (in): 55.40
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 35.9
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 8.33
• Ground Clearance, Rear (in): 8.33
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 97.77
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): 64.6
• Cargo Box Width @ Wheelhousings (in): 51.03
• Cargo Box (Area) Height (in): 21.23
• Tailgate Width (in): - TBD -
• Cargo Volume (ft³): 76.30
• Interior Dimensions
• Passenger Capacity: 3
• Front Head Room (in): 42.40
• Front Leg Room (in): 45.27
• Front Shoulder Room (in): 66.03
• Front Hip Room (in): 60.73
• Summary

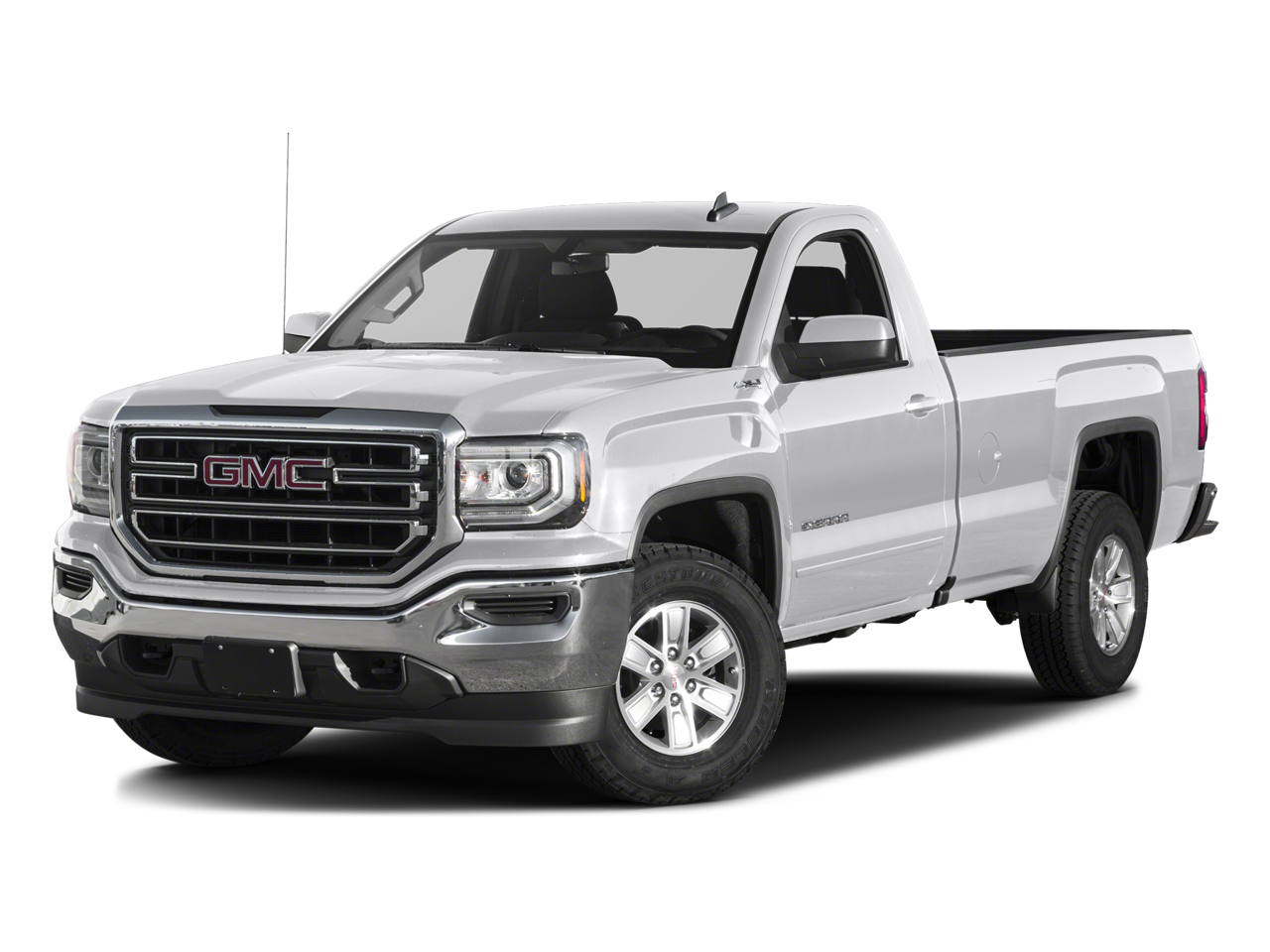

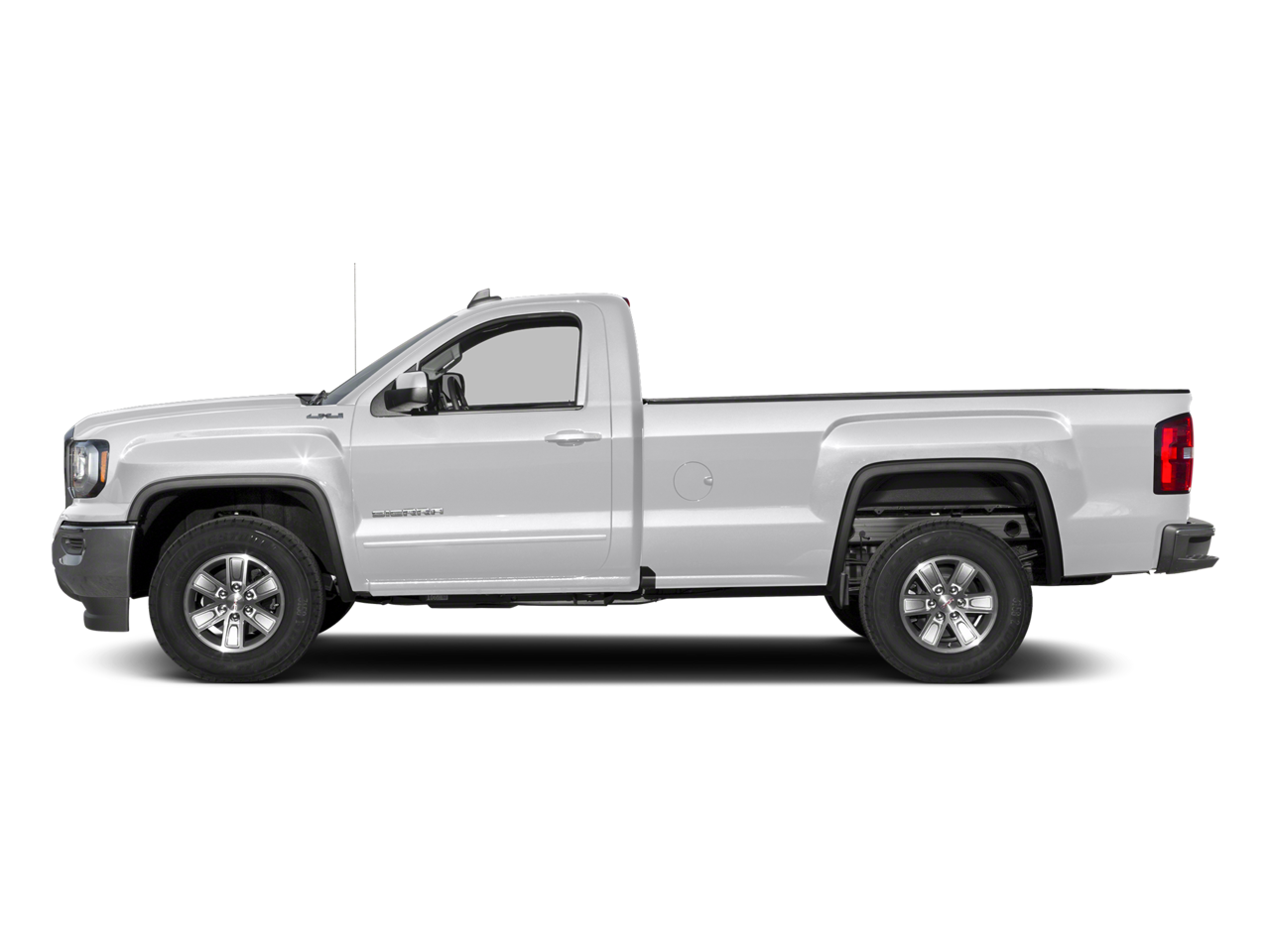

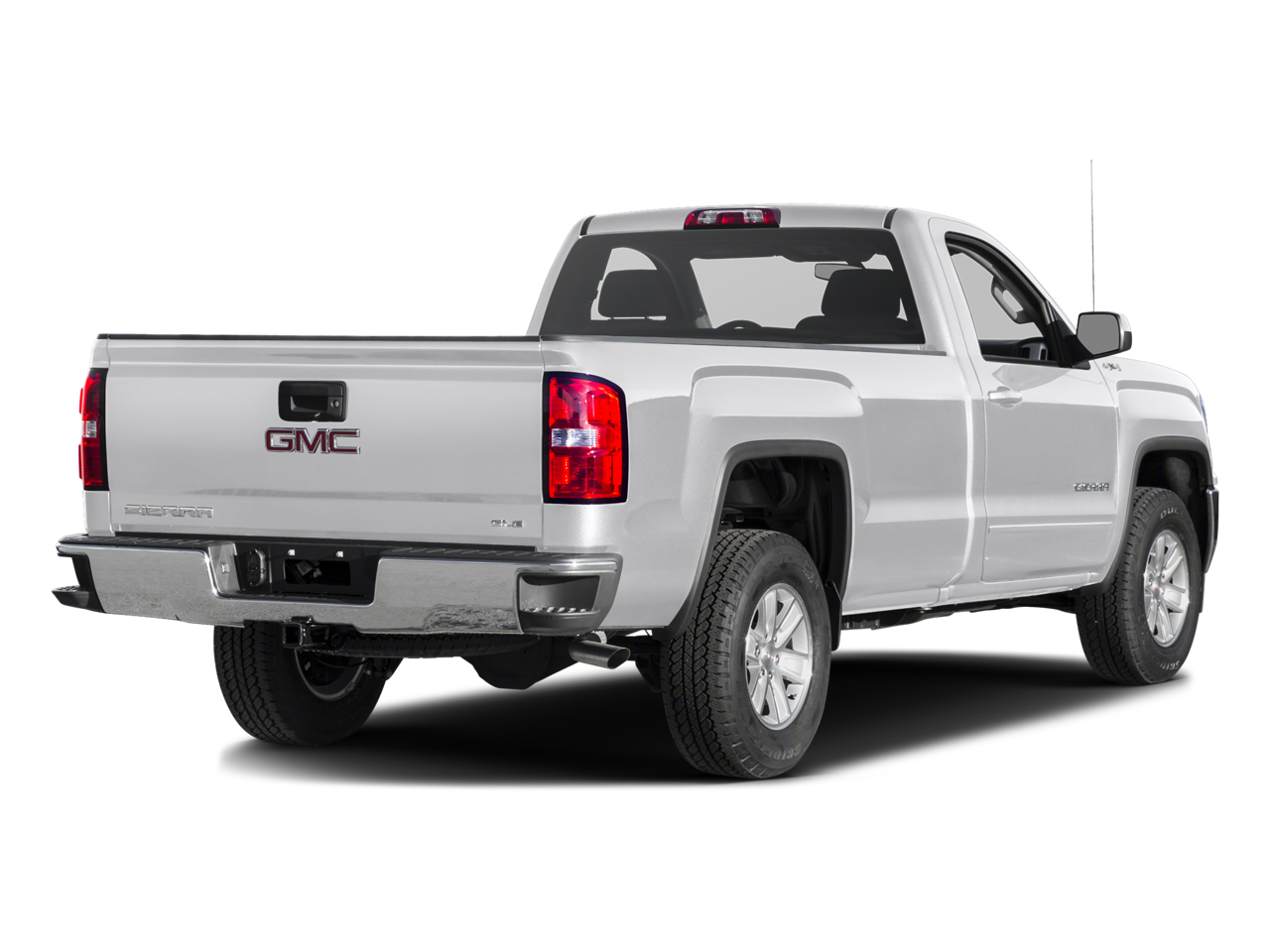

• Vehicle Name: GMC Sierra 1500
• Body Style: Reg Cab Pickup
• Body Code: E63
• Emissions
• EPA Greenhouse Gas Score: - TBD -
• Tons/yr of CO2 Emissions @ 15K mi/year: 9.3
• Tons/yr of CO2 Emissions @ 15K mi/year: 8.8
